Magnetic Drive Circulation Pump

Magnetic drive circulation pump is a full-sealed pump, for motor connecting shaft and impeller are separately equipped with magnetic materials, they attract each other and coupled. Its unnecessary to fit with traditional shaft seal. The rotation torsion of motor drives impeller to rotate through the attraction between driving magnet and driven magnet. The shortcoming of present customary drive pump is that rotations absolutely prohibited under the condition of lacking liquid, other wise, the machine will be destroyed, resulted in unnecessary troubles for customer “YANESS” adopts special ceramics as shaft bearing, characterizing strong resistance for abrasion and corrosion.

Magnetic drive circulation pump is generally designed for no shaft seal, completely avoids defects of pollution after corrosion caused by liquid leakage, which exists in traditional mechanical shaft seal pump. It is the optimum liquid transport pump on the industrial equipment.

YANESS research and development latest magnetic driving pumps with stainless steel casing that food grade, widely used in home brew beer. And DC magnetic pump 12/24V with low noise.

Application

● Chemical industry: Sodium carbonate industry (Production of hydroelectric acid, chlorophyll acid, secondary chemical product); Production of fluoride, chemical fertilizer; Cycle of reactive liquid of gas absorb tower, abstract grease (sulfuric acid); Recycle&reactivation system of waste acid substance; Transport of strong acid between chemical factory and transport vehicle.

● Pharmaceuticals industry: Production of luminous(EL) for semiconductor, pesticides, medicine, water treatment.

● Electric appliance: Cycle filter kinds of electroplating liquid.

● Photograph processing: At-once photograph system; X film, wash-out of black and white, color and solid photograph.

● Electric appliance: Production of chemical capacitor (Erosion by alum inure film), transport electrolyte for manufacture of dry battery and accumulator; Etching circuit board; Transfer high purity of chemical liquid during the manufacture of semiconductor.

● Metal industry: Treatment device for aluminum oxide film; Wire-stretching; oil-elimination and acid cleaning of steel rolling; Oil-elimination and acid cleaning before painting of vehicle; Production of oxidized titanium and rare-earth element.

● Mineral industry: Fusion metallurgy (Transport and recycle the electrolyte); Handing waste liquid.

● Food industry: Production of glucagon acid (hydroelectric acid); Abstracting cooking oil (sulfuric acid); Potted fruit industry (hydroelectric acid); Home-brew beer.

● Medina remedy: Man-made kidney and heart, ultrasonic-washing machine and various of medical equipment.

● Watery treatment: Cleaning ion exchange resin; Pure water production equipment; Sea-water desalting equipment.

● Pollution controls: Add waste water treatment to medical liquid tank; Collect and transport waste liquid; Waste gas absorb equipment (Deodorization equipment, depressurization before waste gs discharge).

● Other application: Applied in silver recycle, water manufacture, laboratory-ice making machine, drinking machine, living boiler, heating exchange machine, solar energy system, dyeing, laser system, water spouting pool, rearing pond fish jar etc.

Type

● Connect: Hose and thread connect type

● Impeller: Standard, high-head and large-capacity type

● Casing: SS304, PP and PTFE

● Power: AC100/110/220/240V, DC12/24V

● Plug: EU, US, AU

(For more information please contact us)

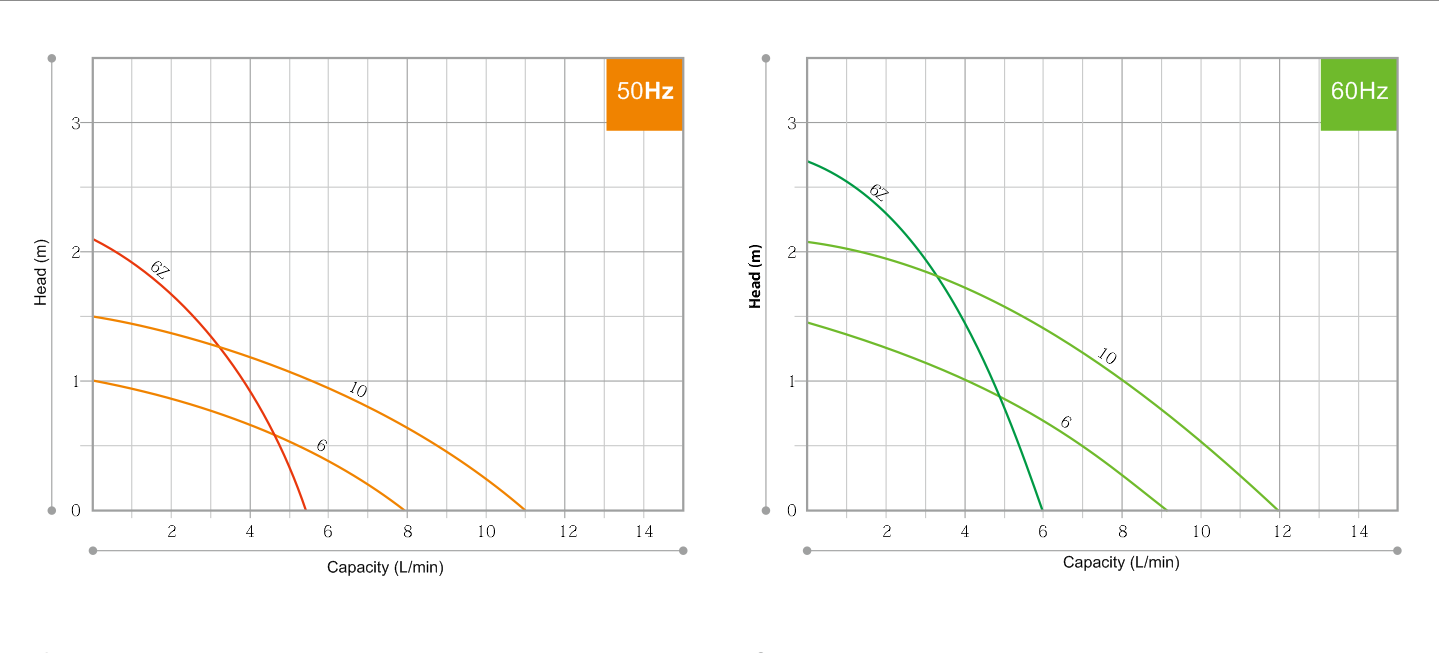

Performance curves

Reference

1, Operating principle of magnetic pump

2, Yaness mrco magnetic pump type

3, Installation Of Magnetic Drive Pump
